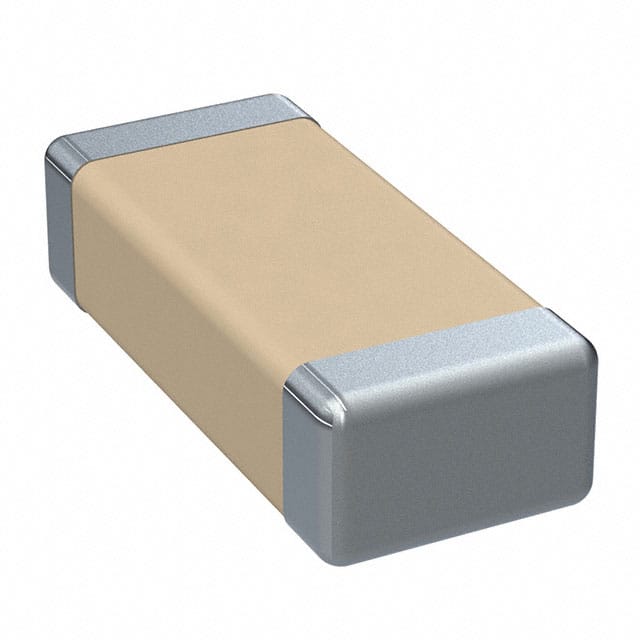

The KEMET C1206X333MAREC7210 is a high-performance capacitor designed for compact electronic applications. This multilayer ceramic capacitor provides excellent capacitance stability and low ESR, ensuring reliable operation in a variety of environments. Its small 1206 form factor allows for space-efficient circuit designs. Optimized for mainstream electronics, it delivers consistent performance over a wide temperature range.
特徵
High capacitance value : Offers 33µF capacitance for effective signal smoothing and decoupling.
Temperature stability : Maintains performance across a broad operating temperature range from -55°C to +125°C.
Low equivalent series resistance (ESR) : Minimizes power loss, enhancing efficiency in electronic circuits.
Voltage rating : Supports a maximum voltage of 25V, making it suitable for various applications.
AEC-Q200 compliant : Ensures reliability for automotive and industrial applications.
應用
Power supply decoupling : Enhances stability by reducing voltage fluctuations in power supply circuits.
Signal processing : Supports filtering and stabilization in audio and RF applications.
Consumer electronics : Integral in devices like smartphones and household appliances for efficient energy use.
Industrial controls : Used in automation systems to ensure consistent operation under varying loads.
Telecommunications : Assists in maintaining signal integrity in communication devices.
Medical devices : Provides reliable performance in sensitive healthcare equipment.
設計注意事項
Capacitor placement : Position close to power pins to minimize noise and improve transient response.
Voltage derating : Operate below the maximum rated voltage to extend the lifespan and reliability.
Temperature variations : Consider environmental temperature to prevent performance degradation.
PCB layout : Ensure adequate grounding and trace width to handle required current without loss.
Parasitic effects : Account for inductance and capacitance in layout design to mitigate unwanted oscillations.
常見問題
Q: What happens if I exceed the voltage rating?
A: Exceeding the voltage rating can lead to capacitor breakdown, causing failure or damage to the circuit.
Q: Can this capacitor be used in high-temperature environments?
A: Yes, it is suitable for high-temperature applications up to 125°C, but ensure proper derating.
Q: What is the expected lifespan of this capacitor?
A: With proper usage and conditions, its lifespan can exceed several years, depending on the application.
Q: Is this capacitor suitable for RF applications?
A: Yes, it delivers low ESR and stable performance, making it ideal for RF applications.
